Specialty Hoists

Conmaco can design and build a Hoist for any application.  We can also modify and/or rebuild existing equipment to meet your requirements.  A few examples include winches for Tower Erection, Pipeline Pulls, Cable Spooling Machines, Barge Moving Systems, and Abandonment and Recovery (A&R) Winches.

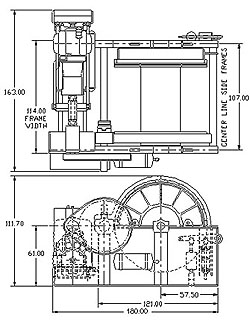

This DMW-250 Single Drum Winch was completely reconditioned and repowered to perform Abandonment and Recovery service on a Pipe laying Barge in the Gulf of Mexico.

Drum Size

Flange diameter (inches)

94

Barrel diameter (inches)

40

Barrel length (inches)

66

Cable Capacity

2 inch (length in feet)

7758

2-1/2-inch (length in feet)

5000

Maximum Cable Size

Diameter (inches)

2-1/2

Drum Brake Holding Power

Maximum pounds on fifth layer

500,000

Drum Brake Dimensions

Diameter (inches)

86

Width (inches)

10

Drum Dog

Holding power at average drum (pounds)

610,000

Drum Clutch

An air-operated jaw clutch is mounted on the intermediate shaft

Approximate Weight

Single drum (pounds)

68,700

Marine Treatment

 Inorganic zinc over sandblasted frame and guards with finish coats of marine machinery epoxy on entire machine.

Torque Converter

Transmission Gear

1 st Layer 42.5" P.D.

6th Layer 63.78" P.D.

12th Layer 89.31" P.D.

S.L.P (lb)

Speed (fpm)

S.L.P (lb)

Speed (fpm)

S.L.P (lb)

Speed (fpm)

Stall

2nd

450358

0

300098

0

214312

0

Low 70%

2nd

276131

17

184001

26

131402

36

Max Eff

2nd

170152

35

113381

53

80970

74

High 70%

2nd

118049

41

78662

62

56176

89

Race

2nd

0

50

0

75

0

105


Stall

3rd

201052.9

0

133972.2

0

95675.14

0

Low 70%

3rd

123272.6

38

82143.08

57

58661.8

80

Max Eff

3rd

75961

78

50617

118

36148

165

High 70%

3rd

52700

92

35117

138

25079

193

Race

3rd

0

112

0

168

0

235

Note: 1st gear blocked out to limit torque




The Amcon JU-36 utilizes a diesel driven closed loop hydraulic power unit to provide precise load lowering control.

The closed loop hydraulic system of the JU-36 is ideally suited for load lowering and load positioning.  The operator directly controls the amount of fluid flowing from the hydraulic pump and therefore the speed of the hoist from the hydraulic joystick.  The hydraulic motor automatically selects the maximum speed that it can operate based on the load that is being raised or lowered.
This feature allows the hoist to use the full horsepower of the diesel engine and therefore maximizing efficiency.  Equal performance is delivered for raising or lowering loads.  The hydraulic oil is cooled by a generously sized shell and tube heat exchanger that is plumbed into the diesel cooling circuit.  The following tables show the winch performance.  The first table shows the maximum line pull and associated speed for that line pull at each layer.  The second table shows the maximum line speed and the associated line pull at that speed at each layer.  The data was calculated using 1.5" wire rope



1.5" Wire Rope

Preformance @ Maximum Line Pull

Layer

P.D. (in)

Single Line Pull (lbs)

Single Line Speed (fpm)

1

19.50

103,763

21.6

2

22.06

91,722

24.5

3

24.62

82,185

27.3

4

27.18

74,444

30.1

5

29.74

68,036

33.0

6

32.30

62,644

35.8

7

34.87

58,027

38.7

8

37.43

54,058

41.5

9

39.99

50,597

44.4

10

42.55

47,553

47.2

11

45.11

44,855

50.0

12

47.67

42,446

52.9


1.5" Wire Rope

Preformance @ Maximum Line Pull

Layer

P.D. (in)

Single Line Pull (lbs)

Single Line Speed (fpm)

1

19.50

103,763

21.6

2

22.06

91,722

24.5

3

24.62

82,185

27.3

4

27.18

74,444

30.1

5

29.74

68,036

33.0

6

32.30

62,644

35.8

7

34.87

58,027

38.7

8

37.43

54,058

41.5

9

39.99

50,597

44.4

10

42.55

47,553

47.2

11

45.11

44,855

50.0

12

47.67

42,446

52.9





CONMACO 045

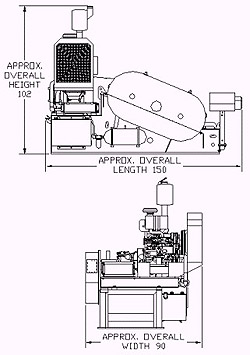

CONMACO'S Engineering department can custom design hoists tailored to your specific needs.  The CONMACO 045 is a double drum waterfall powered by a diesel engine with a power shift transmission.  Typical applications are anchor duty and steel erection.

Drum Dimensions

Flange diameter

30"

Barrel diameter

14"

Drum length

28"

Spooling Capacity

3/4" Wire Rope

2281'

7/8" Wire Rope

1619'

1 " Wire Rope

1302'

Brakes

Each drum is equipped with a single external contracting band type brake. The brake is air-actuated and complete with a spring set override / parking brake feature.
Static Rating First Layer – 46,500 lbs.

Clutch

Each drum is equipped with a multiple disc, air applied, spring released clutch.

Drum Dog

Each Drum is equipped with an air actuated Drum Dog.

Weight (with standard diesel power)

Double Drum

15,000 lbs

Paint

Winch Frame, guards and all sheet metal work are sandblasted and coated with inorganic zinc, with finish coats of polyurethane marine paint.

PERFORMANCE DATA
Theoretical single drum line pull in pounds and feet per minute with an electric starting diesel engine driving through a two speed transmission, using 1" wire rope.

9th Layer

5th Layer

1st Layer

High 70 %

3,519 lbs. @ 566 fpm

9,645 lbs. @ 206 fpm

14,004 lbs. @ 142 fpm

Max. Eff.

5,780 lbs. @ 442 fpm

15,841 lbs. @ 161 fpm

23,001 lbs. @ 111 fpm

Low 70 %

15,468 lbs. @ 115 fpm

20,283 lbs. @ 111 fpm

29,451 lbs. @   76 fpm

Stall

24,185 lbs.

31,714 lbs.

46,049 lbs.



The Conmaco Cable Spooler uses a diesel/hydraulic power train to enable the user to apply tension when installing wire rope on winches and cranes.  The drum can hold up to 11,600 feet of two inch wire rope.





TOWER ERECTION HOISTS
Using state-of-the-art electronic and hydraulic components these hoists can be custom designed to meet any application, from the tallest towers requiring a large spooling capacity to the basic units used for handling guy lines.  Single, double, or triple drum configurations are available with remote power units that incorporate sound proofing insulation for quieter operation.

AMCON MODEL 10MR DOUBLE DRUM TOWER ERECTION HOIST

Width With Platform:

99.13 in.

Width Without Platform:

75.00 in.

HOIST MONITORING SYSTEM:

The hoist monitoring system displays the diesel engine parameters as well as hook speed, parts of line, and amount of line payed out.  Audible and visible alarms are activated if certain parameters are out of range.  The system also includes an anti-two block function and a line-speed-limiter function.

WEIGHTS:

Hoist Weight:

17,050 lbs.

Power Unit Weight:

7,800 lbs.

HOIST:

The hydraulic hoists are configured in a double drum waterfall arrangement allowing both drums to be used simultaneously.  The lower drum is personnel rated.

POWER UNIT:

The power unit consists of a 210 hp Caterpillar engine direct driving the hydraulic pump.  The power unit is housed in a sound-proofed enclosure and the engine has an industrial exhaust silencer to minimize noise.  Engine controls and monitoring are located in the door in the power unit.

OPERATOR'S PLATFORM:

The removable operator's platform contains the adjustable seat, joystick control boxes with engine throttle control, and touch screen hoist monitoring display.

DRUM DIMENSIONS:

Flange Diameter:

48 in.

Drum Diameter:

18 in.

Drum Length:

36 in.

SPOOLING CAPACITY:

3/4" WIRE ROPE:

8,300 ft

BRAKES:

Each hoist is equipped with a smooth spring applied hydraulic release multi-disc wet brake capable of holding 150% of the rated load.  Personnel rated hoists have an additional brake valve capable of holding 150% of the rated load.  External band brakes and ratchet and pawl are also available.

LAYER

LINE PULL (LBS)

LINE SPEED (FPM)

ROPE CAPACITY (FT)

Bare Drum

23,600

114

236

Mid Drum

14,390

186

2,801

Full Drum

10,000

268

7,131

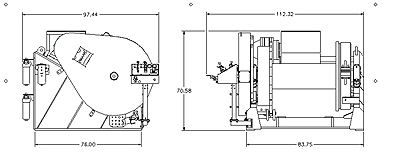

The AMCON Model 385 HDS is one of CONMACO/RECTOR L.P.'s most versatile winches.  This constant horsepower, rugged, closed-loop hydraulic winch is designed not only for mooring applications, but is ideal for hoisting and load-lowering applications.  By utilizing a double hydraulic motor (two motor groups in one housing), the winch has a greater speed range than other hydraulic winches.  Also, a separate power unit, able to be located up to 50 feet away, allows this winch to fit into places where other winches cannot.

DRUM DIMENSIONS

Flange Diameter

49.50 in.

Drum Diameter

18.00 in

Drum Length

45.38 in.

SPOOLING CAPACITY

7/8 in.

8,728 ft.

1 in.     wire rope

6,451 ft.

1-1/8 in. wire rope

5,195 ft.

1-1/4 in. wire rope

4,072 ft.

1-3/8 in. wire rope

3,467 ft.

1-1/2 in. wire rope

2,959 ft.

Drum Brake
The winch has parking brake and service brake features which actuate an external-contracting, band-type brake on the drum.  The parking brake is spring-applied and air-released, while the service brake is air-applied and spring-released. Holding capacity 1st layer: 150,000 lbs.
Drum Clutch
The drum is equipped with a single air-actuated, internal-expanding type clutch.  The clutch is rated for the full drum torque and when disengaged, will allow the drum to free spool
Power Unit Dimensions
Length: 120.00 in.
Width:   82.38 in.
Height:   87.88 in.
Hydraulic Hose Bundle Length:
The standard length is 50 ft.  Other lengths can be supplied upon request.
Drum Dog
The drum is equipped with an air-actuated ratcheting drum dog.  The dog's holding capacity is in excess of the breaking strength of 1-1/2 in. wire rope
Weights
Winch (without rope): 15,000 lbs.
Power Unit:    7,500 lbsngth of 1-1/2 in. wire rope.
Control Console
The winch is equipped with a stand-up type control console mounted to the front of the winch.  Optionally, the console can be remotely mounted.

1ST Layer
Line Pull @ Line Speed

5th Layer
Line Pull @ Line Speed

10th Layer
Line Pull @ Line Speed

 120,073 lbs. @ 40 ft/min

78,729 lbs. @ 61 ft/min

55,027 lbs. @ 87 ft/min

 29,023 lbs. @ 166 ft/min

19,030 lbs. @ 253 ft/min

13,301 lbs. @ 361 ft/min
